Concrete Batching Plant Weighing System: Components, Accuracy and Maintenance

I. What is the Weighing System of the Concrete Batching Plant

The concrete batching plant weighing system is a key measurement system used to accurately weigh aggregates, cement, water and admixtures before mixing. The whole system is located between the raw material storage equipment and the mixing host, serving as a critical measurement link in the batching process.

The concrete mix design has strict requirements. The deviation of the amount of sand, cement, water and admixtures will affect the density, strength and durability of concrete. The measurement accuracy of the weighing system is a key factor affecting the accuracy of the mixing ratio, and it is also an important basis for improving the consistency of the performance of different batches of concrete.



II. The Main Components of the Weighing System of the Concrete Batching Plant

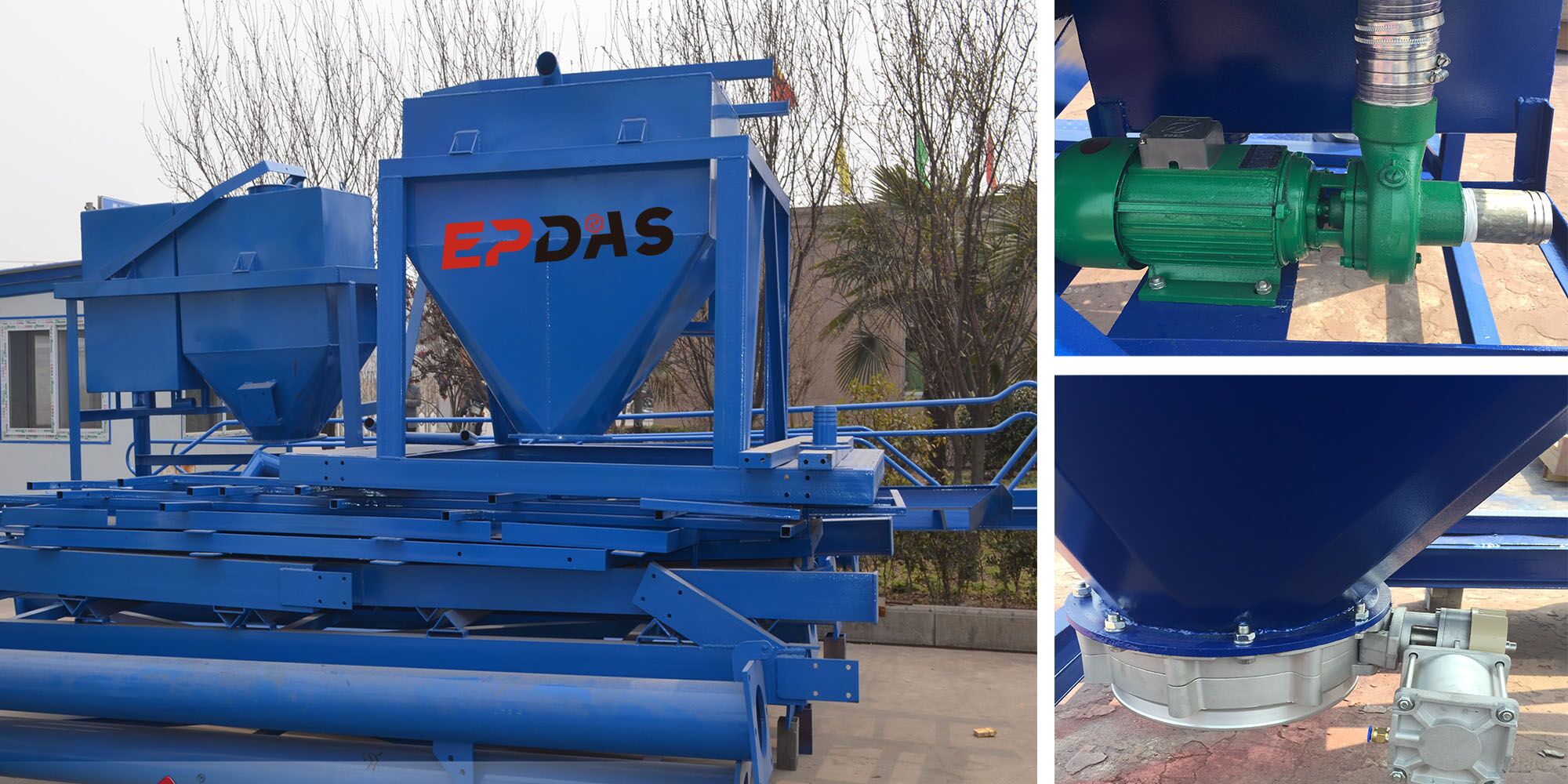

Aggregate weighing system

Aggregate is the raw material with the largest consumption in concrete, mainly including gravel, sand, etc. The corresponding weighing system is also an important module of the mixing station. The system is mainly composed of components such as weighing hoppers and load cells.

The weighing hopper is used to temporarily store aggregates to be measured to provide carrying space for material weighing. The load cell installed on the hopper will detect the change of material weight in real time and feedback the data to the control system. When the equipment is running, the system automatically completes the process of aggregate feeding, weighing and unloading according to the preset ratio parameters, and effectively controls the quantity of aggregates with different specifications.

Cementitious material weighing system

The system is mainly used for the measurement of cement, fly ash, mineral powder and other powdered cementitious materials. Because the powder is prone to dust and moisture, it usually adopts a relatively enclosed weighing structure to reduce material loss and minimize the influence of external factors on measurement accuracy.

Compared with aggregate weighing, powder measurement usually has higher accuracy requirements. The change in the amount of powder added will affect the strength of concrete. The system independently measures the amount of different powder added, so that the proportion of various cementitious materials meets the requirements of the mix design ratio.

Water and admixture weighing system

Water and admixtures are important materials to regulate the working performance of concrete, and the corresponding measuring modules usually have high measurement accuracy. These include the water metering unit and the admixture metering unit, which are used to control the use of production water and the addition of additives such as water reducers and set retarders respectively.

The proportion of additives added to concrete is relatively low, but it has a great impact on the properties of concrete, such as slump and setting time. The system can effectively measure trace materials and reduce performance fluctuations caused by dosage deviations.

Integrated control system

The control system is the core part of the weighing system to realize the automatic operation, which usually relies on the PLC program to control. The weight data of aggregates, powders, water and admixtures collected by each load cell will be transmitted to the PLC control terminal in real time.

The system automatically controls the feeding and unloading processes according to the preset ratio parameters. When the material reaches the set weight, it automatically stops feeding and starts unloading, so as to realize the automated management of the batching process and improve the consistency of batching results between different production batches.



III. How can the Weighing System Ensure the Quality of Finished Concrete Products

Accurate material ratio is an important foundation for the production of high-performance concrete, and the weighing system is an important link to achieve the standard ratio. The stable measurement capacity can make the proportion of raw materials of each batch of concrete meet the requirements of mix design ratio and reduce the operation errors that may occur in the process of manual mixing.

A reasonable and uniform ratio is conducive to the full hydration reaction of concrete, so that the concrete structure after molding has better density and reduces the performance difference between different batches. At the same time, effective control of water consumption and additive addition can improve the slump of concrete.

Accurate weighing can also reduce the excessive input of raw materials. High-cost materials such as cement and additives can be reasonably controlled. At the same time, the waste of materials caused by the deviation of the ratio can be reduced, and the loss of raw materials in the process of concrete production can be reduced.



IV. The Main Factors Affecting the Weighing Accuracy

In modern concrete batching plants, weighing accuracy is usually controlled within the required range through high-precision load cells and automatic control systems. Regular calibration is necessary to maintain measurement stability.

Load cell

Its material, manufacturing process and accuracy level will affect the overall measurement performance. Differences in sensor performance may lead to data drift, abnormal response and other problems. After the long-term operation of the equipment, the measurement parameters may also produce a certain deviation. If there is no regular calibration, the error will gradually accumulate.

The moisture content of raw materials

For example, changes in the water content of sand and gravel will change the actual material composition ratio. If it is only measured according to the weight, it may lead to a deviation in the actual mixing ratio. In addition, the vibration of the equipment and the stability of the foundation during the operation of the mixing station may also have a certain impact on the collection of load cell data and the accuracy of the measurement results of raw materials.



V. Basic Maintenance Method of Concrete Weighing System

Daily maintenance is an important measure to maintain the measurement performance of the weighing system and extend the service life of the equipment. Operators need to calibrate regularly according to the equipment requirements, correct the parameter deviations generated during long-term operation, and keep the measurement data within a reasonable range.

At the same time, the operation status of the load cell, line connection and control module should be checked regularly, and the problems of sensor dust accumulation and loose line should be dealt with in time.

Regularly clean up the residual materials and lump powder inside the weighing hopper to avoid material adhesion and change the self-weight of the equipment, affecting the subsequent measurement results, so that the equipment can maintain a good operating state for a long time.



Conclusion

A reliable concrete batching plant weighing system plays an important role in ensuring accurate batching, stable concrete quality and efficient production. Choosing an experienced concrete batching plant manufacturer allows customers to obtain a properly configured weighing system based on production capacity, material requirements and project conditions.
